Giving permissions to users with Kubernetes

In the last article, we talked about how to create users in Kubernetes so we no longer have the problem of everyone having the same level of access across every namespace. But we didn’t actually get into how to give out those permissions.

Let’s understand a bit more about how RBAC (Role Based Access Control) works and how we can take advantage of it to run our cluster more securely.

RBAC#

Kubernetes supports several authorization methods, and the most famous by far is RBAC, which stands for Role Based Access Control. Basically, what RBAC does is limit access to cluster resources through four Kubernetes resources: Roles, RoleBindings, ClusterRoles, and ClusterRoleBindings.

Having access based on Roles instead of access based on profiles lets you share those Roles with several users, distributing permissions across the cluster so everyone gets the right access when they need it. A basic use case for this model is letting, for example, coordinators and area managers have access to their own namespaces to manage their own staff, avoiding escalating every problem to the cluster’s operations team.

To create these accesses, we’re going to use a very special API group in Kubernetes, rbac.authorization.k8s.io. This means you can create and configure these access policies dynamically through the Kubernetes API and kubectl.

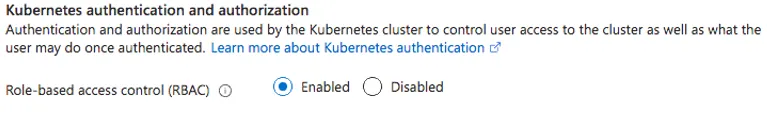

Most clusters already ship with RBAC enabled by default, but you can start a new kube-apiserver with the --authorization-mode=RBAC flag for manual clusters, and, in Azure’s case, you can enable RBAC on an AKS cluster directly from the portal:

Naming#

In RBAC, users are called subjects, and the APIs and resources that users may or may not have access to are called resources. We also have verbs, which are the actions and operations that can be run on a resource by a subject.Verbs are basically the calls a user can make against a given resource. For example, creating a Pod is the verb create on the resource Pod, done by the user.

Roles and ClusterRoles#

The foundation of every RBAC access policy is a native object called a Role. Roles are the rules that define access to a resource, meaning they’re not the rules applied to a subject, but rather the set of rules that can be reused across several users.

Besides Roles, there are ClusterRoles, which, just like Roles, are access rules for one or more resources, except that while a Role object is scoped to its own namespace, a ClusterRole applies to the whole cluster, regardless of the namespace it’s in. This lets you define global policies that apply cluster-wide, and define policies for Kubernetes resources that don’t depend on namespaces at all, like Nodes.

There are a few important rules to know before we get our hands dirty:

• There are no rules for “denying” a user access to a resource. As we mentioned before, just like Ingresses, Kubernetes works on a deny-all model, meaning every permission is denied by default and everything you create is an exception to that denial list.
• Roles always depend on a namespace, so when you create a new Role, you need to set which namespace it belongs to.
• ClusterRoles, on the other hand, don’t need a namespace because they sit above that separation.

Defining our permissions#

In the previous article we created a user called Lucas, who’s part of the development team. Let’s imagine we also created other users in the system to fill out our team:

• Ana, who’s the coordinator of the development area (leader of the devs group, which Lucas is part of)
• Thiago, who’s the manager of the BI area (leader of the bi group)
• Fernanda, who’s a BI analyst (part of the bi group)
• Amanda, who’s one of the coordinators of the DevOps area and one of the cluster operators responsible for keeping several development projects running (part of the devs and devops groups)

To build our scenario, let’s imagine Lucas works on one of the many projects that exist inside the company’s cluster, so to let the work get done, he needs access to his namespace. And, since the company has a fairly mature DevOps culture, every dev is responsible for deploying their own applications, so he needs full access to create resources.

Ana, being the development lead, needs full access to every project in the development area.

Thiago, in the same way, needs full read access to every object in the cluster, but Fernanda is working on the same project as Lucas, so she should only get read access in that one namespace.

Amanda is the cluster coordinator, so she needs full access to every object in the cluster so she can act on them.

Creating the Roles#

Now that we have our stories defined, let’s move on to building our permissions. To do that, we’re going to create a base object called developer, which will apply to every dev inside the projeto1 namespace, which is the project Lucas and Fernanda’s team works on:

1
apiVersion: rbac.authorization.k8s.io/v1
2
kind: Role
3
metadata:
4
  name: developer
5
  namespace: projeto1

So far we’re defining that this Role lives inside the project’s namespace, so every permission will be restricted to that namespace. Now let’s define the rules:

1
apiVersion: rbac.authorization.k8s.io/v1
2
kind: Role
3
metadata:
4
  name: developer
5
  namespace: projeto1
6
rules:
7
- apiGroups: ["", "autoscaling", "apps", "networking.k8s.io"]
8
  verbs: ["get", "list", "create", "watch", "update"]
9
  resources: ["*"]

What we’re doing here is creating a Role that grants access to every resource present in the following APIs:

• "": means the Kubernetes core api, meaning any time we don’t use any kind of FQDN before the / when creating a new workload. Pods, for example, are part of this api, since when we create a new Pod we use apiVersion: v1.
• autoscaling: the group that controls application scalability, HorizontalPodAutoscalers are part of this group
• apps: the group for Deployments, DaemonSets, and others
• networking.k8s.io: the group for Ingresses

You can find every API group in the official docs and also by running kubectl api-resources -o wide, which will show you not just the groups, but also the names and available verbs.

On top of that, we’re granting access to almost every verb, except delete, for every resource described by these APIs through the * wildcard.

For the read-only Role, let’s copy this Role and call it developer-readonly:

1
apiVersion: rbac.authorization.k8s.io/v1
2
kind: Role
3
metadata:
4
  name: developer-readonly
5
  namespace: projeto1
6
rules:
7
- apiGroups: ["*"]
8
  verbs: ["get", "list"]
9
  resources: ["*"]

For the development area management Role, we need to create a permission that grants full access to every resource and verb inside the specific namespaces of the development area. Let’s assume this area has only two projects, called projeto1 and projeto2. In that case we’ll have to create two identical Roles, one for each namespace, and we’ll name them developer-admin:

1
apiVersion: rbac.authorization.k8s.io/v1
2
kind: Role
3
metadata:
4
  name: developer-admin
5
  namespace: projeto1
6
rules:
7
- apiGroups: ["*"]
8
  verbs: ["*"]
9
  resources: ["*"]
10
---
11
apiVersion: rbac.authorization.k8s.io/v1
12
kind: Role
13
metadata:
14
  name: developer-admin
15
  namespace: projeto2
16
rules:
17
- apiGroups: ["*"]
18
  verbs: ["*"]
19
  resources: ["*"]

We can also create Roles interactively with kubectl create role <name> -n <namespace> --verb=verb1,verb2,verb3 --resource=resource1,resource2

Creating ClusterRoles#

For the Role that will apply to Thiago, we need to let him read and list any resource in any namespace of the cluster. That would be a pain if we tried to do it with a regular Role, so let’s create a ClusterRole so it can be applied automatically. We’ll call this ClusterRole readonly:Notice that ClusterRoles don’t have a namespace key.

1
apiVersion: rbac.authorization.k8s.io/v1
2
kind: ClusterRole
3
metadata:
4
  name: readonly
5
rules:
6
- apiGroups: ["*"]
7
  verbs: ["get", "list", "watch"]
8
  resources: ["*"]

For the last permission, let’s create the object that will be given to Amanda. Since she’s the cluster operator, she needs full access to every resource in every namespace of the cluster. Let’s call this ClusterRole cluster-operator:

1
apiVersion: rbac.authorization.k8s.io/v1
2
kind: ClusterRole
3
metadata:
4
  name: cluster-operator
5
rules:
6
- apiGroups: ["*"]
7
  verbs: ["*"]
8
  resources: ["*"]

Just like Roles, we can create ClusterRoles with kubectl using kubectl create clusterrole <name> --verb=verb1,verb2 --resource=resource1,resource2

Applying permissions with bindings#

As we mentioned, Roles and ClusterRoles are just permission definitions. Those definitions need to be applied to users through other “sibling” objects called RoleBindings and ClusterRoleBindings.

Bindings grant the permissions defined in Roles and ClusterRoles to subjects and groups. In our case, we have a few groups but also some individual users we want to grant access to. On top of that, we can also grant access to a ServiceAccount.

The differences between the two are basically the same as between Role and ClusterRole: a RoleBinding can be applied to either a Role or a ClusterRole, although, when done that way, it will apply the ClusterRole’s rules only to the namespace that RoleBinding belongs to, while a ClusterRoleBinding can only be applied to a ClusterRole.

Every binding needs a reference to an existing Role or ClusterRole. RoleBindings can only reference Roles within the same namespace, while ClusterRoleBindings can reference any ClusterRole.

To create our first binding, let’s look at the user Lucas, who’ll have the developer Role attached to him:

1
apiVersion: rbac.authorization.k8s.io/v1
2
kind: RoleBinding
3
metadata:
4
  name: developer
5
  namespace: projeto1
6
subjects:
7
  - kind: Group
8
    name: devs
9
    apiGroup: rbac.authorization.k8s.io
10
roleRef:
11
  - kind: Role
12
    name: developer
13
    apiGroup: rbac.authorization.k8s.io

What we’re doing here is creating a RoleBinding that will apply to every subject in the subjects array. In this case, a subject can have several kinds, like User, Group, and ServiceAccount.

On top of that, in the roleRef key, we have the name of the Role we’re going to apply to these subjects. Here we have two possible kind values, either Role or ClusterRole. And we’re essentially saying we want the Role called developer to be applied to the subject whose kind is Group, in other words, a group of users, called devs.

Now, to create Fernanda’s, we’ll do the same thing, just swapping the roleRef name:

1
apiVersion: rbac.authorization.k8s.io/v1
2
kind: RoleBinding
3
metadata:
4
  name: business-intelligence
5
  namespace: projeto1
6
subjects:
7
  - kind: Group
8
    name: bi
9
    apiGroup: rbac.authorization.k8s.io
10
roleRef:
11
  - kind: Role
12
    name: readonly
13
    apiGroup: rbac.authorization.k8s.io

Now let’s create the binding for Ana. Just like we created two different Roles, we’ll create two more bindings to make sure she gets access directly:

1
apiVersion: rbac.authorization.k8s.io/v1
2
kind: RoleBinding
3
metadata:
4
  name: developer-admin
5
  namespace: projeto1
6
subjects:
7
  - kind: User
8
    name: ana
9
    apiGroup: rbac.authorization.k8s.io
10
roleRef:
11
  - kind: Role
12
    name: developer-admin
13
    apiGroup: rbac.authorization.k8s.io
14
---
15
apiVersion: rbac.authorization.k8s.io/v1
16
kind: RoleBinding
17
metadata:
18
  name: developer-admin
19
  namespace: projeto2
20
subjects:
21
  - kind: User
22
    name: ana
23
    apiGroup: rbac.authorization.k8s.io
24
roleRef:
25
  - kind: Role
26
    name: developer-admin
27
    apiGroup: rbac.authorization.k8s.io

Now we need to create the last two bindings, which are ClusterRoleBindings, since we’re going to grant access to the whole cluster. For Thiago’s case, we need to be careful, because we can’t apply the ClusterRole to the bi group, since Fernanda is also part of that group. So we’ll apply it only to the user:

1
apiVersion: rbac.authorization.k8s.io/v1
2
kind: ClusterRoleBinding
3
metadata:
4
  name: readonly
5
subjects:
6
  - kind: User
7
    name: thiago
8
    apiGroup: rbac.authorization.k8s.io
9
roleRef:
10
  - kind: ClusterRole
11
    name: readonly
12
    apiGroup: rbac.authorization.k8s.io

And, the same way, let’s create Amanda’s binding:

1
apiVersion: rbac.authorization.k8s.io/v1
2
kind: ClusterRoleBinding
3
metadata:
4
  name: cluster-operator
5
subjects:
6
  - kind: User
7
    name: amanda
8
    apiGroup: rbac.authorization.k8s.io
9
roleRef:
10
  - kind: ClusterRole
11
    name: cluster-operator
12
    apiGroup: rbac.authorization.k8s.io

We can also create RoleBindings and ClusterRoleBindings interactively with kubectl create rolebinding <name> --[user|group|serviceaccount] <subject> --[role|clusterrole] <roleRef>

Now that the bindings are created, we can run commands as each user and each of them will have the permissions their team needs.

Conclusion#

Now we know how to create users and how to assign permissions to them. In the next articles, we’ll see how to take our authentication model even further using Azure Managed AD with AKS!

See you there!
