Creating and managing users in Kubernetes

Kubernetes became quite famous for its ability to manage distributed applications and make container orchestration easy. However, as the system became more widely used, we forgot about fundamental things like the security of our cluster.

The problem of shared access#

One of the conveniences Kubernetes provides us is kubectl, its standardized command-line interface and the ability to manage multiple clusters at once makes it tempting to use as the only tool available in a development team.

To provide some context and level everyone’s knowledge, kubectl works with a file called config that usually lives in the ~/.kube folder, and we call it kubeconfig. This file contains the credentials and instructions for how kubectl should behave to connect to the clusters listed there. In short, it’s the key to all the clusters you have access to.

During my years using Kubernetes and consulting with companies, I’ve more than once observed situations where cluster access is shared among the entire development team, meaning the same kubeconfig is passed around to everyone and even used in automated CI tools.

But what’s the problem?#

Just as it’s terrible to give your house key to any stranger passing by, it’s terrible that everyone on the team has the same access, because even though Kubernetes has an audit tool that lets you know what was done and who made the changes, if all users are admin, it becomes difficult to understand what happened.

Furthermore, giving full administrator permissions to anyone who can manipulate the cluster is a recipe for disaster in no time. Many people managing all tools and all namespaces creates a tendency toward lack of control by the cluster administrator.

Authorization and authentication in Kubernetes#

Fortunately, Kubernetes allows us to have a system of authentication and authorization through users, which allows us to create specific access for each person.

Authentication and authorization systems are different, Kubernetes doesn’t manage users themselves, but it has native tools to manage their permissions, called Role, ClusterRole, RoleBinding, and ClusterRoleBinding, which we’ll see in a future article. In other words, user authentication (knowing who is who) and authorization (knowing who can do what) are separate tools that can be managed separately.

But why do this?#

Imagine you work at a large company, like Microsoft, for example. Within companies of this size (or even much smaller ones), we have a very clear division of areas and teams. Each area is responsible for a task or manages one or a series of specific applications.

For example, the team that manages Microsoft Teams is not the same as the one that manages Windows. Although they may need to share resources, one should not have permission to access or manipulate the other’s resources.

Bringing this analogy to smaller companies with fewer products, if we have two distinct teams using the same cluster, each team can only have permissions within its own namespace. Additionally, not everyone on the team should have permissions to change certain resources. For example, the management team can modify all resources in a namespace, but a BI team should not be able to write or delete resources, only read them.

All of this is called RBAC or (Role Based Access Control), and this is just one of the possibilities we have within AKS to manage users. We’ll explore other possibilities in the future.

How authorization works in Kubernetes#

Kubernetes exposes a REST API. It’s the one we need to control to prevent unauthorized people from accessing the cluster. That is, just as we protect our APIs from external access, we need to protect our cluster.

To do this, Kubernetes uses this server to authorize requests, evaluating the attributes of that request against a set of policies created by the administrator and gives a boolean response yes or no whether the user can or cannot perform the action. By default, Kubernetes adopts a deny all practice, that is, nobody has permission for anything, they need to be added.

kubectl has a command called auth can-i to check if a given user can or cannot perform an action within the API, for example:

1
$ kubectl auth can-i create pods --namespace production

And if you’re an administrator, you can combine this command with the --as flag to impersonate a user and test permissions for them.

1
$ kubectl auth can-i create pods -n production --as lucas

RBAC with AKS#

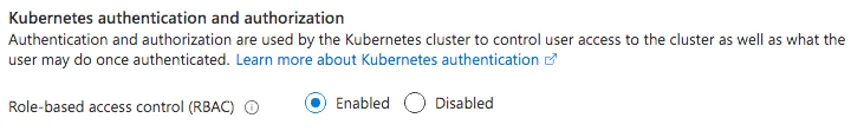

By default, when we create an AKS cluster, RBAC is enabled, that is, we don’t need to do anything different to create a cluster with this capability already. In the Azure panel, we have an option that tells us whether or not we can use RBAC for authorization:

In this article, we’ll only create the users, we won’t work on the authorization part yet. That will be for a future article.

To create a cluster using the command line we can do it like this:

1
az aks create \
2
  -n nome \
3
  -g rg \
4
  --enable-rbac \
5
  --generate-ssh-keys \
6
  --node-count 1

Creating users in Kubernetes#

In Kubernetes, we have two concepts of users, as they can be people like you and me, but they can also be other non-human services, like a CI for example. That’s why we have a distinction between a User and a ServiceAccount.

Essentially, a User is a concept that does not exist within K8S as a valid resource, that is, we don’t have a manifest file with Kind: User because User is not a valid resource definition. Users are processes or humans that exist outside the cluster, so they are not managed.

In the case of ServiceAccounts, we’re talking about processes that are dependent on their namespaces and are not human in nature, although we can create SAs for humans as well. These resources exist as a valid RD, that is, we have Kind: ServiceAccount and we can create one from a Kubernetes manifest file. These are processes internal to the cluster and are generally more commonly tied to pods.

In short, both use the authorization API, but we can do this:

1
kubectl create serviceaccount minhaconta

But we can’t do this:

1
kubectl create user lucas

This means that Kubernetes does not store or manage user information. All this identity management is done through common means outside the cluster, the most common way is through digital certificates in X509 format.

Using certificates#

The most common and safest way, as we mentioned before, is to use an X509 certificate to create a user. This certificate is signed by the cluster’s CA and allows the user to authenticate to the API using this validation. That is, Kubernetes checks if the request is authenticated with the certificate’s key. If yes, it’s a trusted user, because only the cluster itself can issue such a certificate.

However, beyond all the cryptographic security of the certificate, the process is quite secure because it requires both the person requesting authorization and the authorizer to participate in the user creation process, which goes something like this:

1. User generates a private key (or uses their own)
2. The user generates a new CSR (Certificate Signing Request) with this key and sends it to the administrator
3. The administrator signs the CSR with the cluster’s CA, making it a valid X509 certificate in CRT format, and returns the CRT file to the user
4. The user can use kubectl commands to create their user on their machine

Creating a user#

Let’s go through the complete process, simulating a created cluster so we can authenticate our user.

First, let’s generate a new private key using OpenSSL:

1
openssl genrsa -out ./lucas-k8s.key 4096

Now we can generate the CSR file:

1
openssl req \
2
  -new
3
  -key ./lucas-k8s.key \
4
  -out ./lucas-k8s-csr \
5
  -subj "/CN=lucas/O=devs"

Here we need to note some important things. First, we’re generating the key for a user called lucas, which becomes clear when we set the Common Name (CN) in the CSR. This field will name our user. Additionally, we have the Organization (O) fields. In this case, we’re creating a user called lucas that’s part of the devs organization.

For Kubernetes, CN is the user’s name and O are the groups this user belongs to. We’ll use this information when we create the Roles and RoleBindings in future articles.

Now, our user has both the key and the necessary CSR. Let’s send these files to our cluster’s administrator, who will sign this certificate.

The administrator can SSH into the Kubernetes control plane and sign the certificate manually, which is more difficult but more secure, or create an object called CertificateSigningRequest within Kubernetes that tells the cluster it has a CSR to sign with its CA.

The entire CSR object requires a valid CSR file in base64 format, so let’s convert our lucas-k8s.csr to a new encoding:

1
$ cat ./lucas-k8s.csr | base64 | tr -d '\n'

Copy the terminal output and let’s create a manifest file called csr.yaml:

1
apiVersion: certificates.k8s.io/v1beta1
2
kind: CertificateSigningRequest
3
metadate:
4
  name: lucas-csr
5
spec:
6
  request: <cole o base64 aqui>
7
  usages:
8
    - digital signature
9
    - key encipherment
10
    - client auth

Now we create this object in the cluster by calling kubectl apply -f csr.yaml and we can see what we created using the kubectl get csr command:

1
NAME        AGE    REQUESTOR      CONDITION
2
lucas-csr    34s   masterclient   Pending

Notice that the certificate is Pending, this is because every CSR needs operator approval to be created. Let’s approve this creation with the command kubectl certificate lucas-csr approve. This will generate a confirmation message and then we can run the kubectl get csr command again, which will have slightly different output:

1
NAME        AGE    REQUESTOR      CONDITION
2
lucas-csr   5m3s   masterclient   Approved,Issued

Notice that besides Approved, it’s also been issued (Issued), so we’re ready to send this certificate back to our user. To get the certificate, let’s execute a neat oneliner:

1
kubectl get csr lucas-csr \
2
  -o jsonpath='{.status.certificate}' \
3
  | base64 -d > lucas-k8s.pem

We’ll have a new file called lucas-k8s.pem. Let’s make sure it’s valid with the command openssl x509 -in ./lucas-k8s.pem -text -noout. This will give us, among other information, the name and expiration dates of the certificate.

Registering the user in kubeconfig#

Now we’ll send the certificate back to the user so they can create their user. To do this, we need to work with our kubeconfig. Since we don’t have two machines, make a copy of your current file so you don’t lose data with mv ~/.kube/config ~/.kube/config.bkp.

Let’s get the AKS base data again using az aks get-credentials -n cluster -g rg and we’ll use kubectl to create new credentials:

1
kubectl config set-credentials lucas \
2
  --client-key /caminho/para/lucas-k8s.key \
3
  --client-certificate /caminho/para/lucas-k8s.pem \
4
  --embed-certs=true

Now let’s combine the user configuration we just created with the cluster configuration:

1
kubectl config set-context lucas \
2
  --cluster=nome_do_cluster \
3
  --user=lucas

Since we cloned the AKS base image, it comes with administrative access by default. Let’s remove the administrator access before sending it to our user:¹

1
kubectl config delete-context <nome-do-contexto>
2
kubectl config unset users.nome_do_resource-group_nome-do-cluster

Now you can test with kubectl config use-context lucas. Try running any command. Since we haven’t created any permission scheme, it will always return a message:

1
Error from server (Forbidden): pods is forbidden: User "lucas" cannot ...

Using Tokens#

Another way to create users is by giving them JWT tokens for authentication. A common use of this form of authentication is for external services or temporary users, since it’s easier to remove a token than a certificate.

This is because we create tokens using ServiceAccounts, the same way we create them for non-human services. Each SA will create a new Secret with a JWT token that’s valid even outside the cluster.

The creation is quite simple:

1
kubectl create serviceaccount lucas-sa

Now, let’s get the SA and see the name of the Secret it created using kubectl get sa lucas-sa -o yaml. Notice we have a key called secrets. This key will be an array of objects whose name property is the name of the secret we’re looking for. In my case it was like this:

1
secrets:
2
  - name: lucas-sa-token-6dfl4

Now let’s get the token with this simple command:

1
TOKEN=$(kubectl get secret lucas-sa-token-6dfl4 -o jsonpath='{.data.token}')

To create a new user in kubectl with a token, we can use the following command line:

1
kubectl config set-credentials lucas-token \
2
  --token=$TOKEN && \
3
kubectl config set-context lucas-token-context \
4
  --cluster=nome-do-cluster \
5
  --user=lucas-sa

Conclusion#

We’ve seen how we can create users in Kubernetes through digital certificates and tokens. In future articles, we’ll explore how to complete the picture by giving them different permission levels with roles. Be sure to follow the continuation of this series.

With this, your cluster’s security will increase greatly and you’ll become able to understand and manage users so that no one can do anything other than what you’re allowing. Improving the audit trail in the process.

See you!
