Are UUIDs bad? Understanding ULID

In development, the ability to generate unique IDs has always been necessary, especially when dealing with large volumes of data. Over time we encountered another problem: we can’t only generate sequential IDs. They have several problems, one of which is that they are predictable and susceptible to external attacks.

So we created several other types of IDs. One example is Snowflake, which is the type of ID used by Twitter to create IDs that would be unique in distributed computing (which has the additional complication of potentially generating the same ID in two different places without one knowing about the other). But what really took off was the UUID protocol, or Universal Unique IDentifiers.

But recently, we had an addition to our toolkit, ULIDs. Let’s understand what they are. But first we need to understand a bit about UUIDs.

UUIDs#

The UUID model was originally proposed in an RFC, and later moved to RFC-9562. UUIDs now have 8 versions, each one is a bit different from the others and has some special uses.

• UUID V1: Generated from a timestamp, a monotonic counter, and a MAC address. It has 128 bits like the others, where the first 60 are reserved for a timestamp in nanoseconds since October 15, 1582.
• UUID V2: It is outside the original specification because it is reserved for security IDs, almost no one uses them today.
• UUID V3: IDs generated from an MD5 hash created by the user. As you can imagine, they are not very random. They contain only 2 bits of variance and are used more as individual identifiers, which doesn’t make much sense.
• UUID V4: The most common of all IDs, it is generated from completely random data. This is what most of us use to store data in DBs, etc.
• UUID V5: A slightly better implementation than version 3, uses SHA1 (which is also no longer ideal). But still, somewhat unused.
• UUID V6: This is exactly like V1, except the bit order was changed so that when sorted, it can be sorted by creation date.
• UUID V7: The closest implementation we have to ULID, it is a timestamp and random data. Being 48 bits of timestamp, 4 of version, 2 of variance, and 74 of randomness.
• UUID V8: V8 is the customized version of UUID, the only two fields that are required are version and variance.

How do we create a UUID?#

All UUIDs have 128 bits, they all have 4 bits for version, which is literally a number showing what version it is, for example, UUID V4 would have this bit equal to 0b0100, which is 4 in binary, and 7 would be 0b0111 and so on.

0bxxx means a binary number, for example, 0b1010 is the same as 10 in binary

The variant is always started as 0b10, in binary 0010 would be two, but this 10 has another meaning that we’ll see in a moment. This is why every UUID v4 will have a 4 in the third block:

1
919108f7-52d1-4320-9bac-f847db4148a8
2
              ^ver ^var

Overall, V1 and V6 are obsolete and should be replaced by 7, v2 is reserved for computational security, and v3 became obsolete with v5. So the ones that matter are 4, 5, 7, and 8.

A real example#

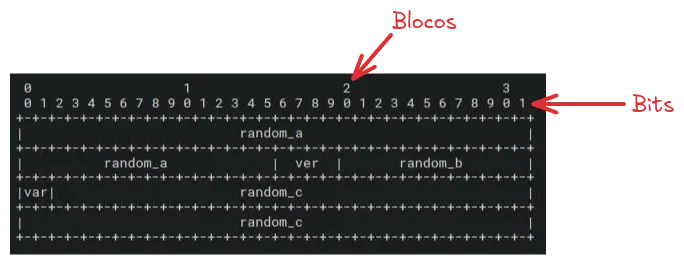

These are 4 blocks of 32 bits (from 0-3, counting 0-9 in each). The first 48 bits (from 0 to 32 in block 3, added with 6) are designated for the first random set random_a, then we have from octet 6 to bit 9 of the first block the version ver, in this case it’s 0b0100, then we have another 12 bits of random data random_b, the variance which is always 0b10, and the other 62 final bits are random_c, so it works like this:

1. 128 bits are 16 bytes, we can generate random data of 16 bytes in hex 975e79e12bef34bd33bb11ea33560517, this representation has 32 characters, remembering that each hexadecimal character has 4 bits, so 4 bits * 32 chars = 128 bits.

1. Now we define our bits
   1. 48 bits of random: 48 bits are 6 bytes (48/8) so they are the first 12 letters 975e79e12bef, to maintain block separation, we divide into 8 and 4 chars 975e79e1-2bef
   2. 4 bits of version: fixed at 0b0100
   3. 12 bits of randomness: 12 bits can be understood as 1 full byte and half a byte, so the next 3 letters, but we already took one letter that is the version, so we skip the next one which is 3 and take 4bd
   4. 2 bits of variance: fixed at 0b10
   5. 62 bits of randomness: starting from 4bd, there are 7 more bytes (7*8 = 56 bits) and another 6 bits so that’s 14 letters plus 1 extra letter, but skipping the first 3 (from 33bb) because we have half a bit separated for variance 3bb11ea33560517
2. If we separate everything we’ll have something like this:

4. But this doesn’t add up. We have two bits missing, we remove one of the characters (at position v3bb) to place the variance, but the variance is 0b10, not 0b0010. Well, that’s why we calculate the hexadecimal first, so imagine we have this here:

1
975e79e1-2bef-34bd-33bb-11ea33560517
2
xxxxxxxx-xxxx-Vxxx-vxxx-xxxxxxxxxxxx

5. To replace the version V, we can simply ignore the number that’s there (which is 3) and put a 4 in its place because we have 4 bits for version, which is enough for a hexadecimal number:

1
975e79e1-2bef-34bd-33bb-11ea33560517 -- initial
2
xxxxxxxx-xxxx-4xxx-vxxx-xxxxxxxxxxxx -- mask
3
975e79e1-2bef-44bd-33bb-11ea33560517 -- final

6. Now for the variance bit, since we only have 2 bits, we need to fill the two missing bits with the first two most significant bits of the next number, in our case the number at the v position in the mask is 3, so 0b0011, since we fixed the first two of the variance at 0b10, we need to take the first two of the next number and discard the rest, the final number is 0b1000, which is 8:

1
975e79e1-2bef-34bd-33bb-11ea33560517 -- initial
2
xxxxxxxx-xxxx-4xxx-vxxx-xxxxxxxxxxxx -- mask
3
975e79e1-2bef-44bd-83bb-11ea33560517 -- final

In JavaScript (Node) we can do this with buffers, like this:

1
const randombuf = crypto.randomBytes(16)
2
Buffer.concat([
3
  randombuf.subarray(0,6), // 48 bits, 6 bytes
4
  Buffer.from([(randombuf[6] & 15) | 64]), // 4 bits of version + 4 existing bits
5
  randombuf.subarray(7,8), // 1 byte
6
  Buffer.from([(randombuf[8] & 63 ) | 128]), // concatenates the variance
7
  randombuf.subarray(8) // rest
8
])

Which we can simplify with a single buffer:

1
const randombuf = crypto.randomBytes(16)
2
const result = Buffer.alloc(16)
3
randombuf.copy(result, 0, 0, 6)
4
result[6] = (randombuf[6] & 15) | 64
5
result[7] = randombuf[7]
6
result[8] = (randombuf[8] & 63) | 128
7
randombuf.copy(result, 9, 9, 16)

But what are these magic numbers? 15, 63, 128? They are the decimal representation of the binary numbers 0000 1111 or 0f which is 15, 0011 1111 or 3f which is 63, and 1000 0000 or 80 which is 128. Essentially these operations are done to remove bits directly, for example, our version bit is 3, it’s in the 6th byte which is 34:

1
V = 0x34 or 0011 0100
2
# We need to zero out the first 4 bits while keeping the last 4
3
# to do this we can do an and with 0000 1111 which is 0x0f
4

5
0011 0100
6
    &
7
0000 1111
8
---------
9
0000 0100 # 0x04
10

11
# Now we can "add" with 4
12
# which would be an OR with the number 0x40 which is 64 or 0100 0000
13

14
0000 0100
15
    +
16
0100 0000
17
---------
18
0100 0100 # 0x44

For comparison purposes, this is the functionality implemented in the UUID module on NPM:

1
function v4(options?: Version4Options, buf?: Uint8Array, offset?: number): UUIDTypes {
2
  options ??= {};
3

4
  if (native.randomUUID && !buf && !options) {
5
    return native.randomUUID();
6
  }
7

8
  options = options || {};
9

10
  const rnds = options.random || (options.rng || rng)();
11

12
  // Per 4.4, set bits for version and `clock_seq_hi_and_reserved`
13
  rnds[6] = (rnds[6] & 0x0f) | 0x40;
14
  rnds[8] = (rnds[8] & 0x3f) | 0x80;
15

16
  // Copy bytes to buffer, if provided
17
  if (buf) {
18
    offset = offset || 0;
19

20
    for (let i = 0; i < 16; ++i) {
21
      buf[offset + i] = rnds[i];
22
    }
23

24
    return buf;
25
  }
26

27
  return unsafeStringify(rnds);
28
}

Again, it generates a random buffer first, then does a bitwise and with 0x0f, which in binary is 0000 1111, that is, it’s discarding the first block, then doing a bitwise or with 0x40 which is 0100 0000, replacing the first quartet with 0b0100:

1
# Random
2
rnds[6] = 0x8a => 1000 1010
3
1000 1010 & 0x0f = 1000 1010 & 0000 1111
4

5
1000 1010 # 0x8a
6
    &
7
0000 1111 # 0x0f
8
---------
9
0000 1010 # now we add (+ is an or) with 0x40
10
    +
11
0100 0000 # 0x40
12
---------
13
0100 1010 # 0x4a

For the variance it’s taking the value at position 8, removing the first two bits of the first quartet through AND with 0x3f which is 63 in decimal, with the first two bits zeroed, we can replace them with 0b1000 which is 8 in decimal, but since we have a full byte, it would be 1000 0000 which is 128 in decimal:

1
# Random
2
rnds[8] = 0x75 => 0111 0101
3
0111 0101 & 0x3f = 0111 0101 & 0011 1111
4

5
0111 0101 # 0x75
6
    &
7
0011 1111 # 0x3f
8
---------
9
0011 0101 # now we add (+ is an or) with 0x80
10
    +
11
1000 0000 # 0x80
12
---------
13
1011 0101 # 0xb5

The thing is, the first block of the ID is not sortable, it’s just a random number from a buffer.

ULID#

ULID means Universally Unique Lexicographically Sortable Identifiers, it is an ID compatible with UUIDs, also with 128 bits. ULIDs are case sensitive, and they don’t have any other special characters so we can use them in URLs, just like UUIDs.

The difference is that the layout of a ULID is much simpler.

1
 01AN4Z07BY      79KA1307SR9X4MV3
2

3
|----------|    |----------------|
4
 Timestamp           Random
5
   48bits             80bits

The timestamp is a 48-bit integer representing UNIX time in milliseconds, while the randomness is 80 bits of generic random data. The main difference, as the name says, is that they are alphabetically sortable. In addition, they are not encoded using hexadecimal, but an algorithm called Base32 (which was created by Douglas Crockford, who is also the creator of JSON), so the number of symbols is quite limited:

1
0123456789ABCDEFGHJKMNPQRSTVWXYZ

This makes the ID smaller (26 letters instead of 32), which is more space efficient. However it has a tricky part, it’s possible that there are collisions if two ULIDs are generated in the same millisecond, which is not uncommon in distributed systems. When this is detected (however it is), the random component is incremented by 1 at the least significant bit, remember that it uses big endian notation, so the most significant bits are on the left, therefore the least significant ones are on the right.

While the comparison is somewhat uncertain and even a bit unfair, ULIDs have some advantages over UUIDs:

1. They are smaller, 26 instead of 32 characters, saving at least 6 bytes per ID
2. Lexical ordering, although this is not a major point of comparison because UUID v7 is also sortable, just not lexically
3. Advantages in database storage
   1. When using ordered indexes, ULIDs can take advantage of the same order and be more performant
   2. If you are storing time series data, ULIDs can be stored and retrieved in order without needing any further sorting
4. Another point I consider an advantage is that ULIDs are more readable than UUIDs

Conclusion#

In the end this article ended up being more about UUID than ULID itself 🤣, but I hope you’ve learned how UUIDs work.

Overall, ULIDs are a good option when you want to generate data that needs to be sorted or searched lexically. For small applications I don’t think it would have much impact, but for large distributed applications you can have both space savings and performance gains by using ULIDs lexically.

However, ULIDs are not very common, chances are you’ll have to implement your own generator or your own validator. Libraries like Zod already implement validations for ULID, but Node, for example, does not implement a ULID generator and won’t because ULID is not based on any IETF RFC, which makes it riskier since it’s a protocol that may or may not survive for decades (the same applies to Snowflake, for example).

My suggestion is, don’t use ULIDs unless it’s absolutely necessary, prefer testing UUID v7 for data that can be sortable first.
